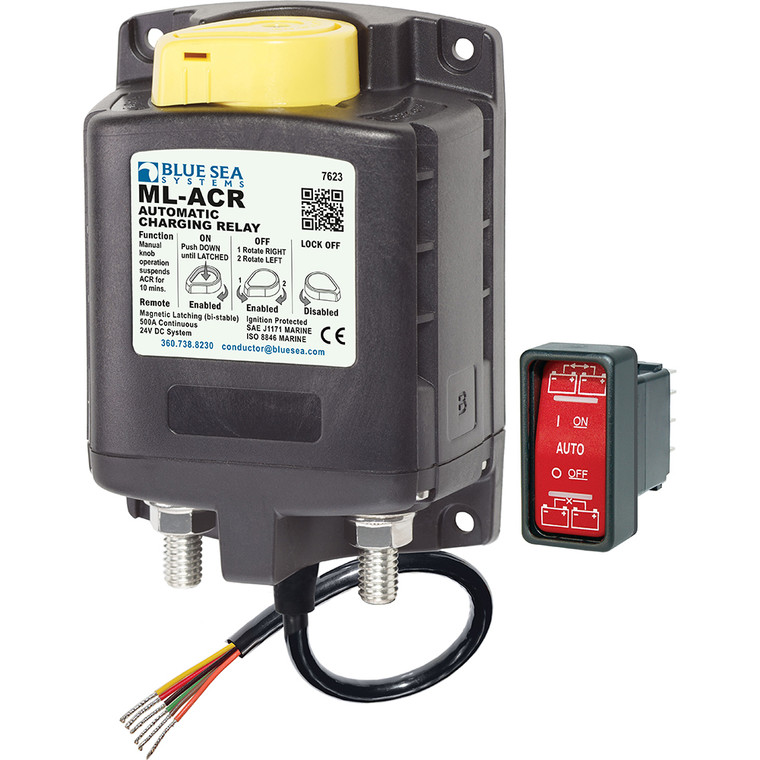

Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay - 24V

Blue Sea 7623 ML-Series Heavy Duty Automatic Charging Relay - 24V

(No reviews yet)
Sale  $248.98  $256.68
SKU:
MP-34968
|
UPC:
632085076238
Dimension:
7.00 (cm) × 3.00 (cm) × 11.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:
7623

Manual Control: Yes
Coil Voltage: 24v

Features:
  • Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • 500 Ampere continuous rating
  • Magnetic Latch (ML)-ACR draws very low current (<10 mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
  • Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)-Can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • Supports high-output alternators up to 500 Amps
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit protection
  • Silver alloy contacts provide high reliability for switching live loads
