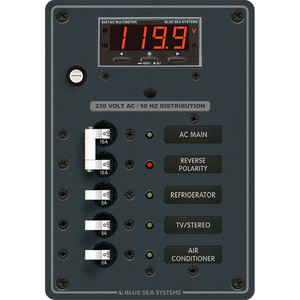

Blue Sea 8143 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 3 Position

Blue Sea 8143 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 3 Position

Blue Sea 8143 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 3 Position

(No reviews yet)
$301.73
SKU:
MP-20705
|
UPC:
632085081430
Dimension:
7.00 (cm) × 5.00 (cm) × 12.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:
Description
230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8143
White Switches


  • (1) 16A Double Pole Circuit Breaker Installed

  • (3) 8A Single Pole Circuit Breakers Installed

  • (1) 9354 AC Analog Voltmeter


    • Features:
    • Red reverse polarity indicating LED
    • All hot, neutral and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 50 Amperes
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual Labels available
