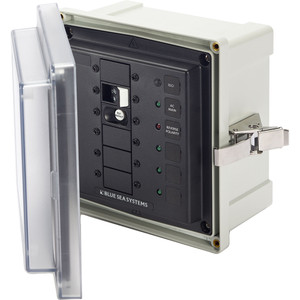

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC/50A ELCI Main - 1 Blank Circuit Position

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC/50A ELCI Main - 1 Blank Circuit Position

Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC/50A ELCI Main - 1 Blank Circuit Position

(No reviews yet)
Sale  $731.22  $753.84
SKU:
MP-52007
|
UPC:
632085031190
Dimension:
9.00 (cm) × 7.00 (cm) × 9.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:
Description
SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet.

Features:
  • Includes one 120/240V AC / 50A ELCI Main and one blank position
  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Specifications:
  • Minimum Operating Temperature: -40 degrees C
  • Maximum Operating Temperature: 85 degrees C
  • Cover Screws and Hardware: 10-32 Stainless Steel
  • Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
  • Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
  • Mounting Hardware: 1/4" Diameter, #12 (6 mm)
  • Weight: 6.95lb (3.15 kg)
