Lenco 101XD Extreme Duty Actuator - 12V - 2 1/4" Stroke - 3/8" Hardware

(No reviews yet)

Sale $274.02 $282.49

Lenco Marine

SKU:

MP-29126

UPC:

874847003216

Dimension:

4.00 (cm) × 3.00 (cm) × 14.00 (cm) (W × H × D)

This item is temporarily out of stock.

Current Stock:

101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

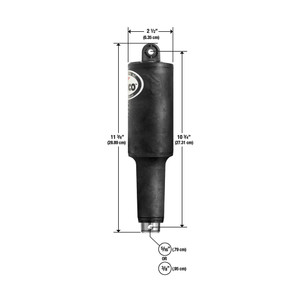

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 11^3/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
Stronger top cap and mounting clevis design
Improved pressure-tight torx screws
Integrated wiper seal at actuator base
Molded-in brass thrust bearing design
Thicker and stronger motor housing wall
Improved O-Ring design for more consistent seal
Over-molded cable providing a stronger tighter seal
Upper mounting bracket with gland seal

Features:

Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion.
12 Volt
3/8" mounting hardware
6 foot cable
