Marinco Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

(No reviews yet)

$251.41

SKU:

MP-89520

UPC:

035028710822

Dimension:

7.00 (cm) × 7.00 (cm) × 10.00 (cm) (W × H × D)

This item is temporarily out of stock.

Current Stock:

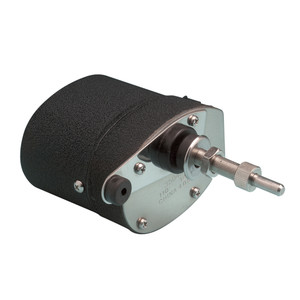

Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination.

Features:

Available in three shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
Factory pre-set sweep angles of 80 degrees or 110 degrees, with easy adjustment to 45 degrees or 60 degree
Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
Two-speed motor
Sealed 6" wire leads, 16 AWG
Adjustable right or left self-parking
0.625" diameter shaft (16 mm)
Available in 12V and 24V models
Coast to park
RF shielded circuitry
Retail version includes 5 amp fuse and holder (operating switch not included)
Measures approximately 7.75" L x 4" W x 2.75" D
Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
Stall current: 11.5-13.0 amps
No load current: 0.5-1.2 amps
Replaces AFI 2000 motor
