Marinco Wiper Motor 1000 Series - 12V - 2.5" Shaft - 110°

(No reviews yet)

$179.05

SKU:

MP-79309

UPC:

035028371108

Dimension:

6.00 (cm) × 6.00 (cm) × 10.00 (cm) (W × H × D)

This item is temporarily out of stock.

Current Stock:

Wiper Motor 1000 Series - 12V - 2.5" Shaft - 110°

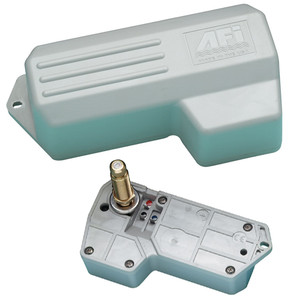

The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree.

Features:

Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree
0.625" diameter shaft (16 mm)
12 volt heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
Retail version includes 5 amp fuse and holder (on/off switch not included)
RF shielded circuitry
Weight: 1.75 lbs
Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
Measures approximately 6.625" L x 3.375"W x 2" D
Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall current: 9.8-10.0 amps
No load current: 0.8-1.2 amps+
