Marinco Wiper Motor 2.5 Series - 12V - 2.5" Shaft - 80° - Heavy-Duty

Marinco Wiper Motor 2.5 Series - 12V - 2.5" Shaft - 80° - Heavy-Duty

(No reviews yet)
$285.88
SKU:
MP-79310
|
UPC:
035028820828
Dimension:
7.00 (cm) × 7.00 (cm) × 10.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:

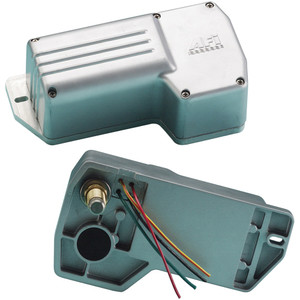

Wiper Motor 2.5 Series - 12V - 2.5" Shaft - 80° - Heavy-Duty

The 2.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 26" Deluxe arm and Deluxe blade combination or a 24" Premier arm and Premier blade combination.

Features:

  • Available in two shaft lengths: 1.5" and 2.5"
  • Factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree
  • Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
  • Two speed motor
  • Sealed 6" wire leads, 16 AWG
  • Adjustable right or left self parking
  • 0.625" diameter shaft (16 mm)
  • Available in 12V and 24V models
  • Coast to park
  • RF shielded circuitry
  • Retail version includes 6 amp fuse and holder (operating switch not included)
  • Measures approximately 7.875" L x 4.25" W x 3" D
  • Stall torque: 139 in-lbs (160 kgf/cm; 15.7 Nm)
  • Stall current: 9.0-10.5 amps
  • No load current: 1.0 -1.6 amps
