Marinco Wiper Motor, MRV, 12V, 3.5" Shaft - 80°

(No reviews yet)

$204.45

SKU:

MP-76803

UPC:

035028380056

Dimension:

6.00 (cm) × 4.00 (cm) × 7.00 (cm) (W × H × D)

This item is temporarily out of stock.

Current Stock:

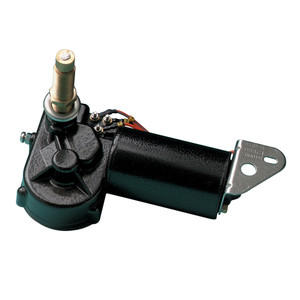

Wiper Motor, MRV, 12V, 3.5" Shaft - 80°

The MRV Wiper Motor easily powers 22" x 22" deluxe arm/blade combinations, or a 20" x 20" premier arm/blade combination at sweep sets of 80 degree or less.

Features:

Factory pre-set sweep of 80 degree or 110 degree adjustable to 45 degree, 60 degree, 80 degree or 110 degree
0.625" diameter shaft (16 mm)
Available in 3 shaft lengths: 1.5", 2.5" and 3.5" (includes .5" length of knurled arm fitting)
Corrosion-resistant casing
Heavy-duty motor with right angle drive
Two-speed motor, can be operated as one speed
Solid brass knurled drive nut with brass and stainless steel drive shaft
Adjustable right or left self parking, coast to park
Retail version includes 5 amp fuse and holder
Stainless steel fasteners and mounting bracket
Use with three-position switch (not included)
Compact size - 7.625" L x 4" W x 2" D
Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
Stall current: 11.5-13.0 amps
No load current: 0.5-1.2 amps
