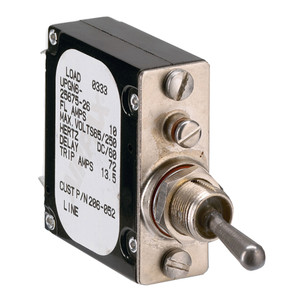

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof

Paneltronics Breaker 10 Amps A-Frame Magnetic Waterproof

(No reviews yet)
Sale  $44.54  $45.92
SKU:
MP-29829
|
UPC:
602290201411
Dimension:
2.00 (cm) × 1.00 (cm) × 2.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:
Description
Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers
  • Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
  • Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers
  • UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada
  • Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
  • Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)

Specifications :

  • Handle Color Metal with Silicon rubber seal
  • Maximum Amperage 50 Amps
  • Maximum Voltage /AIC 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
  • Rated Switch Cycles Rated Switch Cycles 10,000 actuations at rated current and voltage
  • Electrical Hardware Screw 10-32 x 3/8" pan combo head (P/N 197-188)
  • Mounting Hardware Hex nut 1/2-32 (supplied with circuit breaker)
  • Lockwasher 1/2" internal tooth (supplied with circuit breaker)
  • Optional Boot Black silicone rubber (P/N 048-015)
