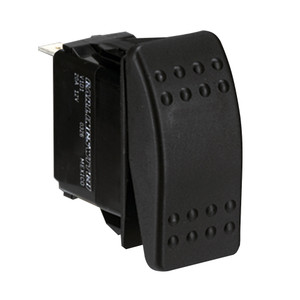

Paneltronics SPST ON/OFF Rocker Switch

Paneltronics SPST ON/OFF Rocker Switch

Paneltronics SPST ON/OFF Rocker Switch

(No reviews yet)
$28.51
SKU:
MP-29770
|
UPC:
602290100035
Dimension:
1.00 (cm) × 1.00 (cm) × 1.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:
Description
Rocker Switch

  • UL Recognized and CSA Certified
  • Single Pole Non-Illuminated
  • Snap-in Mounting
  • Replacement Switches for Paneltronics' Deluxe and Premier Panels


Specifications:

  • Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
  • Contacts: Silver Plated Copper
  • Terminals: Silver Plated Copper 1/4" (6.3mm) Quick Connects
  • Operating Temperature: -4 deg. F (-20 deg. C) to 131 deg. F (55 deg. C)
  • Housing and Actuator: Black Thermoplastic
  • Flammability Rating: UL 94 V-2
  • Rated IEC 60529: IP40
  • Panel Thickness: 1/8" (3.18 mm)
  • Recommended Panel Cut-Out: 1.188" (30.18 mm) x 0.468" (11.89mm)
