Raymarine Type 1 Pump 12V

Raymarine Type 1 Pump 12V

Raymarine Type 1 Pump 12V

(No reviews yet)
Sale  $909.04  $937.15
SKU:
MP-12743
|
UPC:
023193811208
Dimension:
5.00 (cm) × 4.00 (cm) × 10.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:
Description

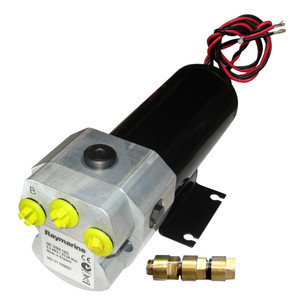

Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack

Corepack Used S1 or S1G

Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)


(no load) 67in/min (1000cc/min)



Corepack Used S2 or S2G

Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)

Peak Flow Rate
(no load) 67in/min (1000CC/min)
