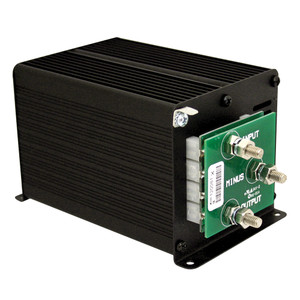

Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter

Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter

(No reviews yet)
$116.56
SKU:
MP-67246
|
UPC:
622988060243
Dimension:
6.00 (cm) × 3.00 (cm) × 8.00 (cm) (W × H × D)
This item is temporarily out of stock.
Current Stock:

20A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

  • Advanced switchmode design
  • Mount in almost any location
  • Compact and light weight
  • Reverse polarity protection
  • High efficiency
  • Current limiting circuit
  • Overvoltage crowbar circuit
  • Non-Isolated for negative ground system

Specifications:

  • Input: 20-30 VDC
  • Output: 13.8 VDC
  • Amps: 20 Amps
  • Weight: 2.2 (lbs)
  • Weight: 1 (kg)
  • Dimensions: 7.75 x 4.75 x 2.4 (in)
  • Dimensions: 19.7 x 12.1 x 6.1 (cm)
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
