Shakespeare 390 23' Single Side Band Antenna NOT UPS SHIPPABLE

(No reviews yet)

$524.09

Shakespeare

SKU:

MP-10595

UPC:

719441600013

Dimension:

3.00 (cm) × 3.00 (cm) × 168.00 (cm) (W × H × D)

This item is temporarily out of stock.

Current Stock:

THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

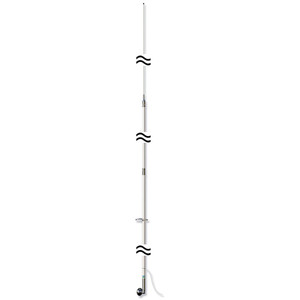

Shakespeare Style 390 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.

Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
Side feed termination band
Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
Two sections: Base 162"; Tip 112"
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	2-30 MHz HF band with tuner
Bandwidth:	Resonant frequency 10.8 MHz
SWR:	N/A
Impedance:	(Ohms): N/A
Gain:	N/A
Max Input (Watts):	1000
DC Ground:	N/A
Termination:	Side Termination
Height (feet):	23
Polarization:	Vertical
Radiation pattern:	Omni-directional
